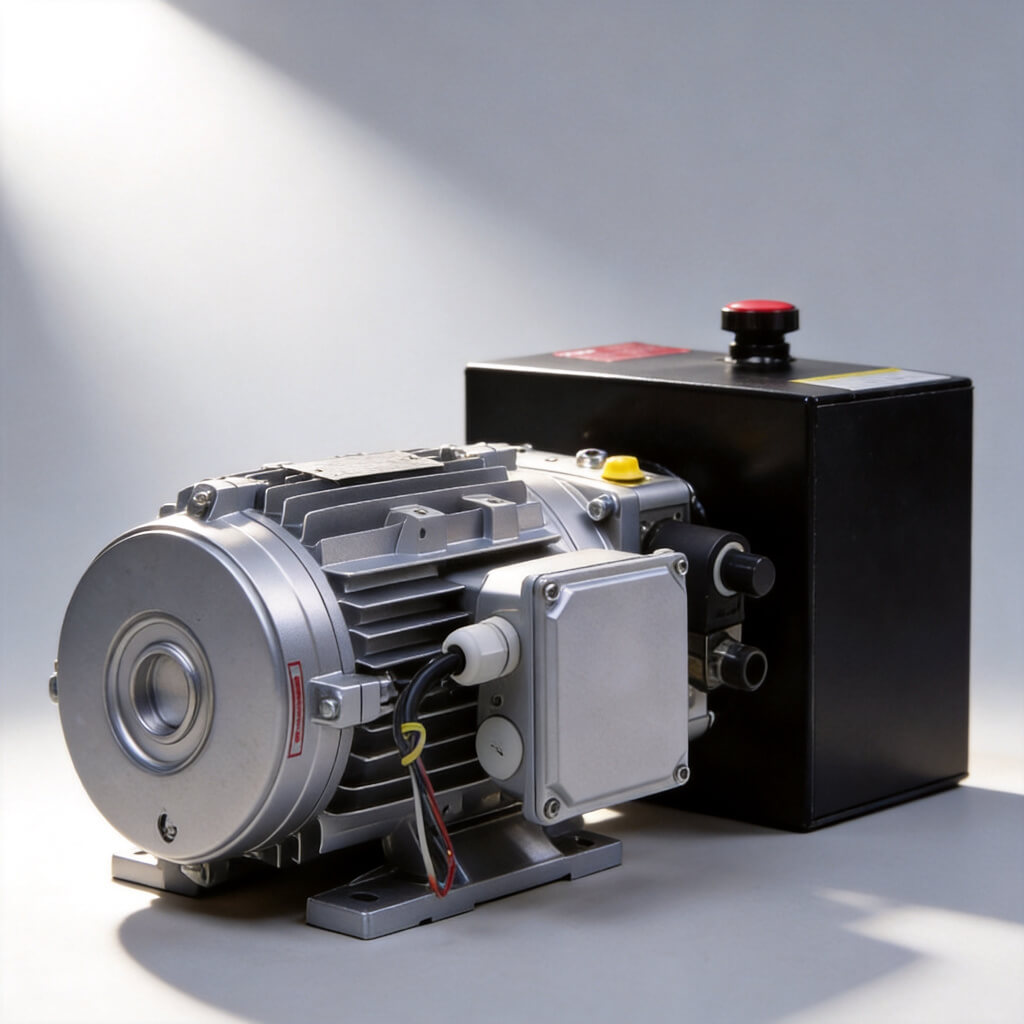

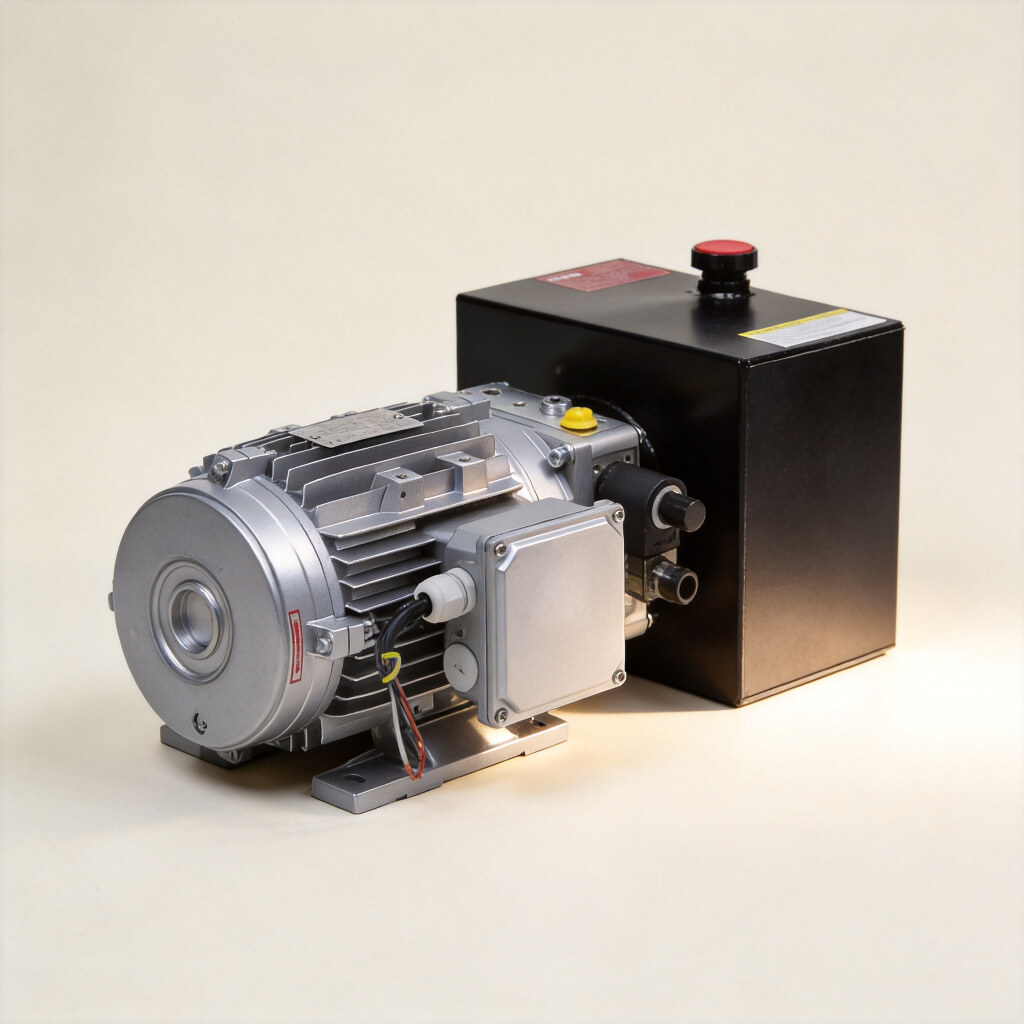

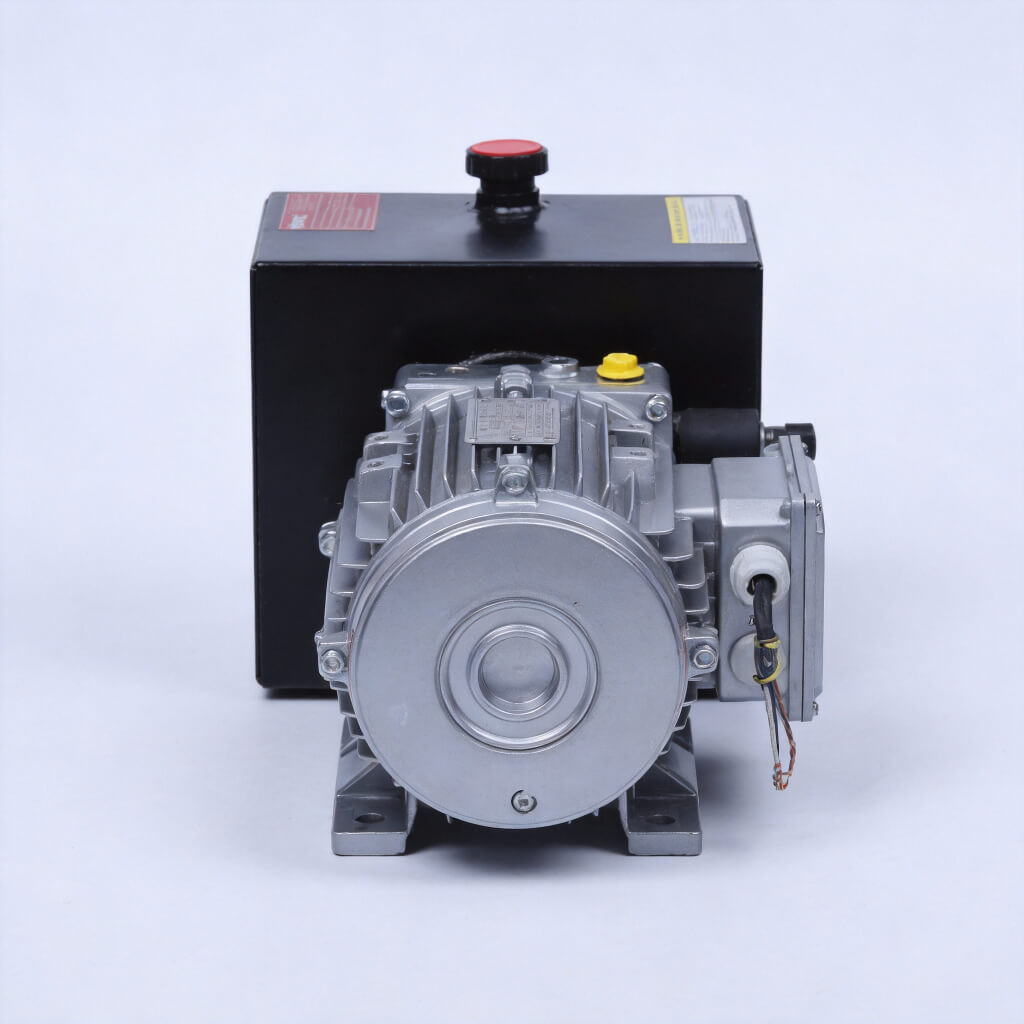

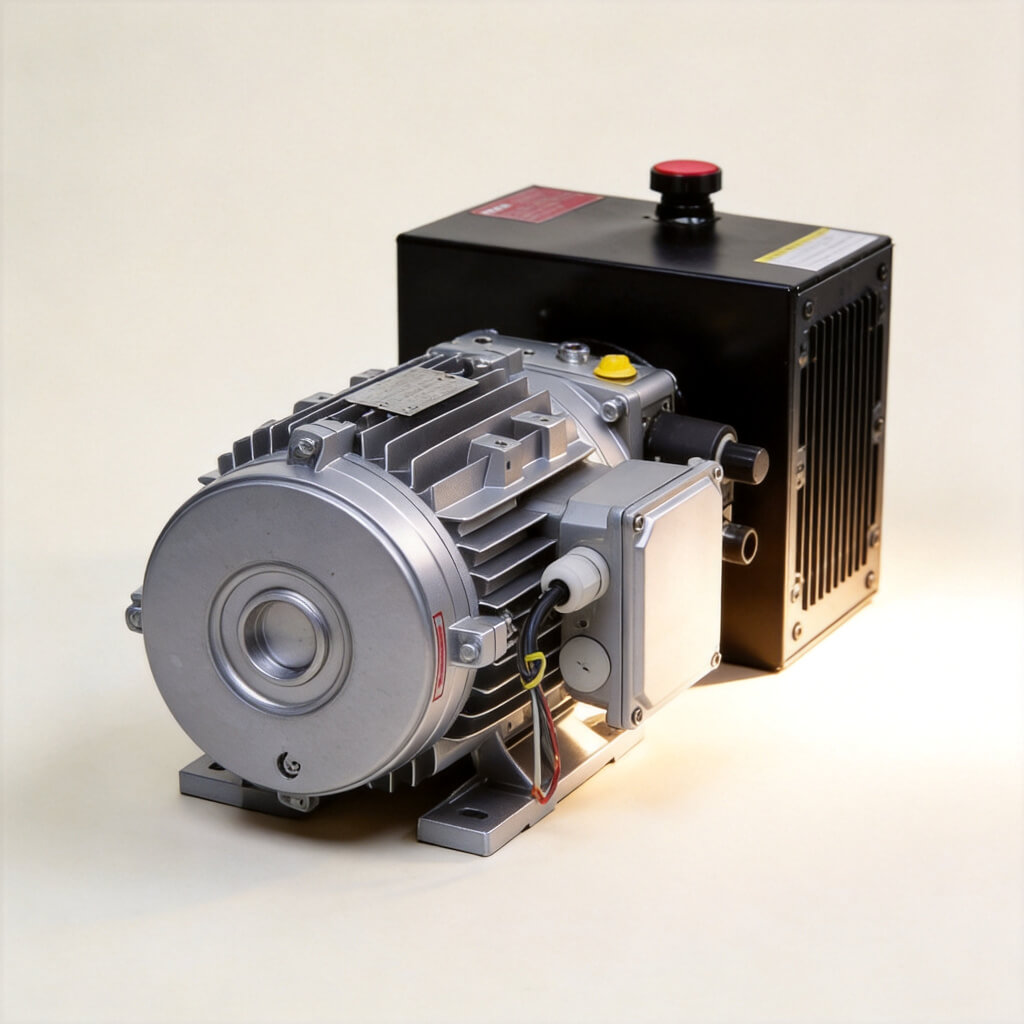

This hydraulic power unit is designed for telescopic belt conveyors. It integrates a high-pressure gear pump, AC motor, center valve block, cartridge valve and oil tank to provide an integrated hydraulic solution.

After starting the motor, the hydraulic system drives the equipment to rise; when descending, the solenoid valve is opened to control the descent by its own weight.

The built-in pressure compensation valve ensures that the equipment can achieve a uniform descent speed under no-load and load conditions, avoiding unstable speed fluctuations.

There are 1.5–4 kW optional motors, 220–380V optional voltages, and iron and plastic oil tanks to choose from.

Main Features

• Built-in pressure compensation valve for smooth and uniform descent
• Stable descending speed under both no-load and loaded conditions
• Integrated hydraulic structure for telescopic belt conveyor systems
• Motor power options: 1.5–4 kW
• Voltage options: 220–380V AC
• Oil tank options: iron or plastic

Specifications

Special Notes

• S3 intermittent duty only
• 10 seconds ON / 90 seconds OFF
• Keep the cylinder, pipe and fittings clean before installation
• Recommended hydraulic oil viscosity: 15–68 cSt
• Use ISO VG46 in summer and ISO VG32 in winter
• Check the tank oil level before first operation
• Replace hydraulic oil after the first 100 hours, and then every 3,000 hours
