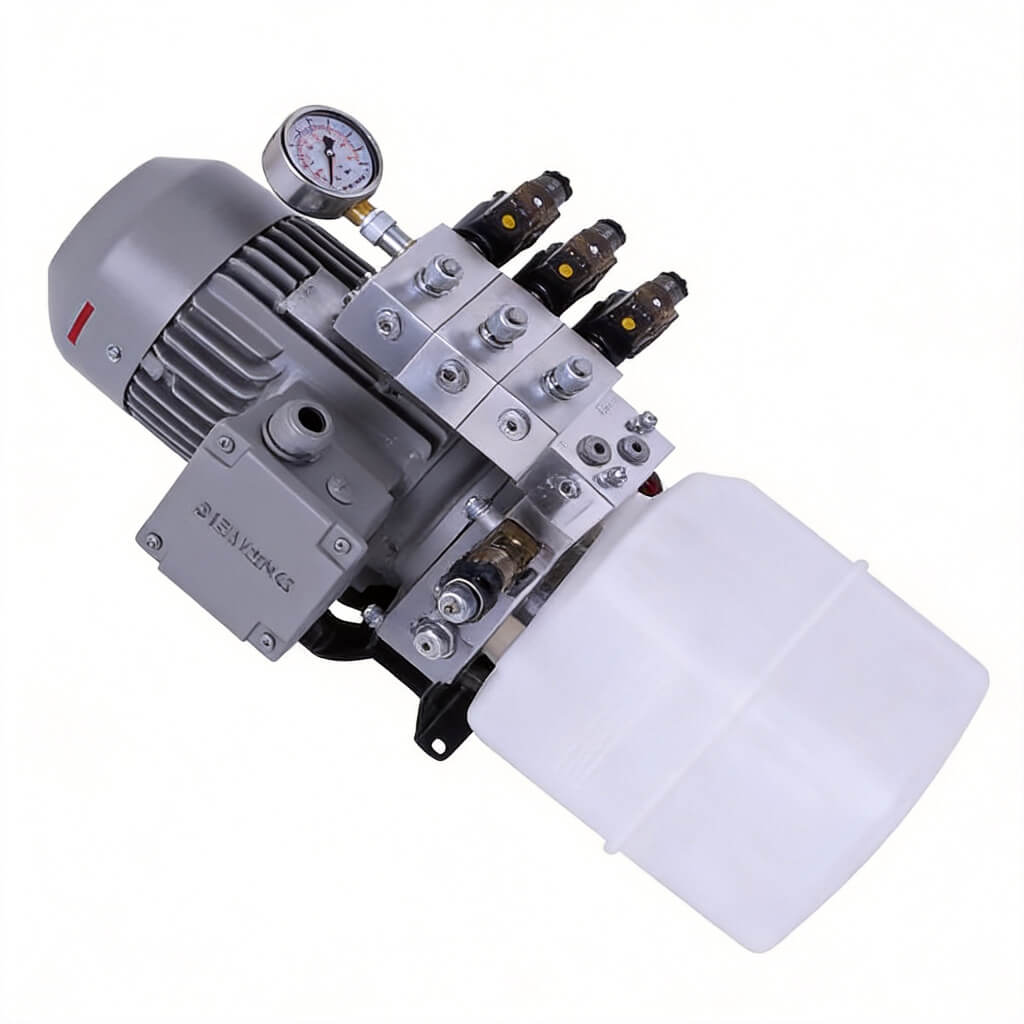

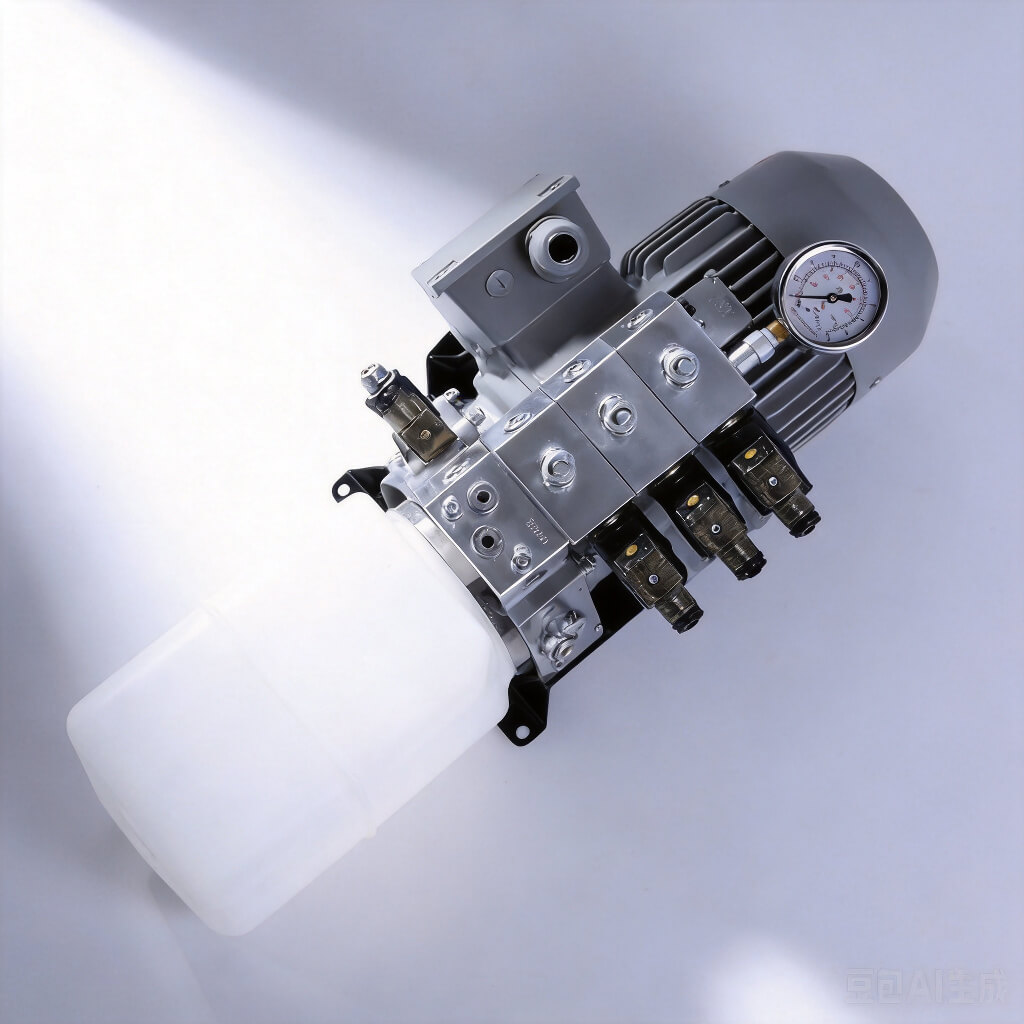

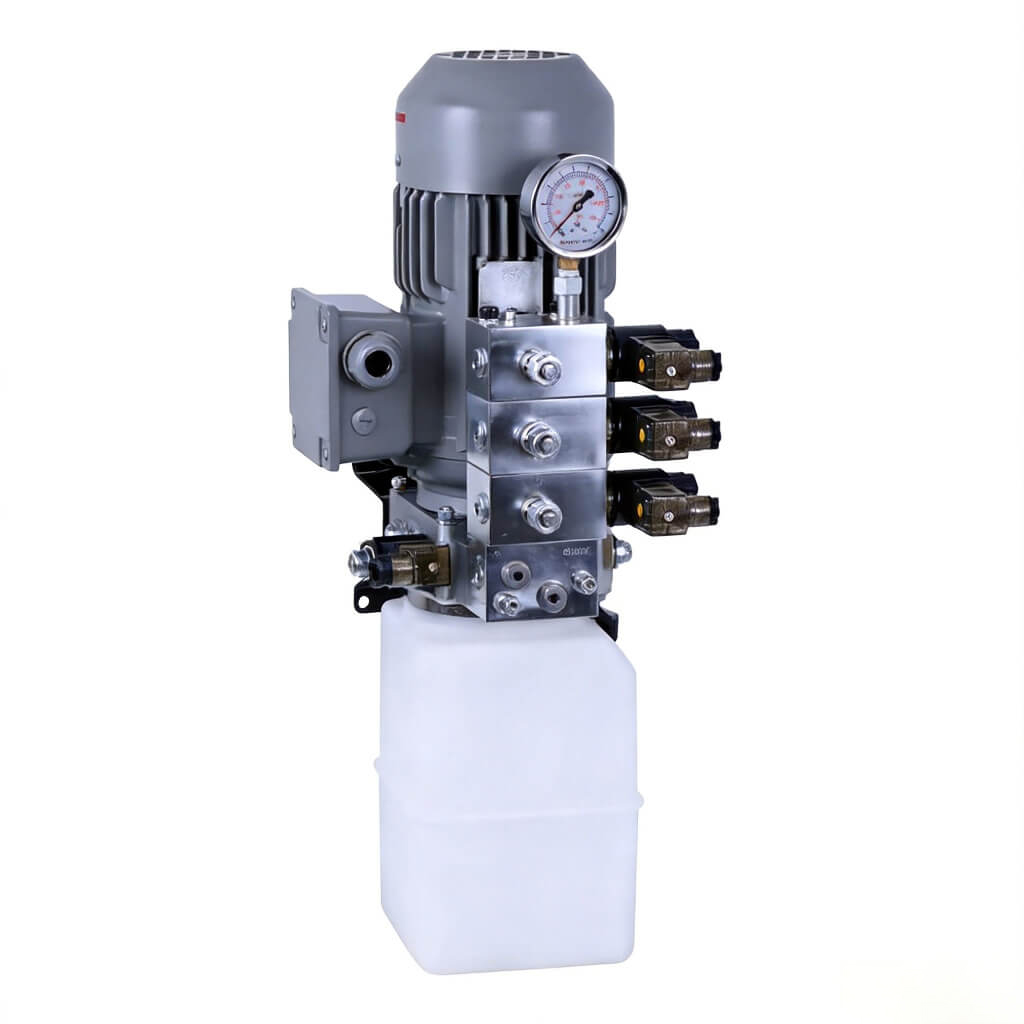

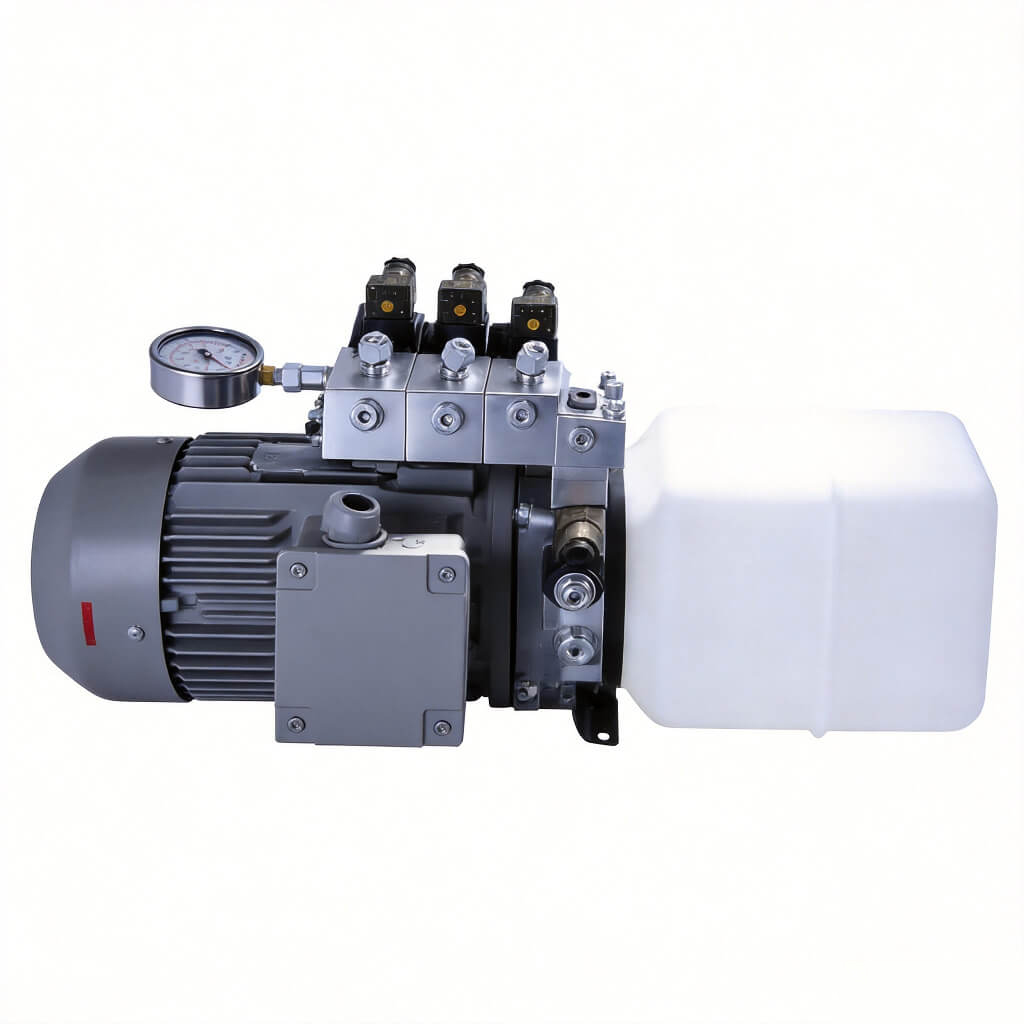

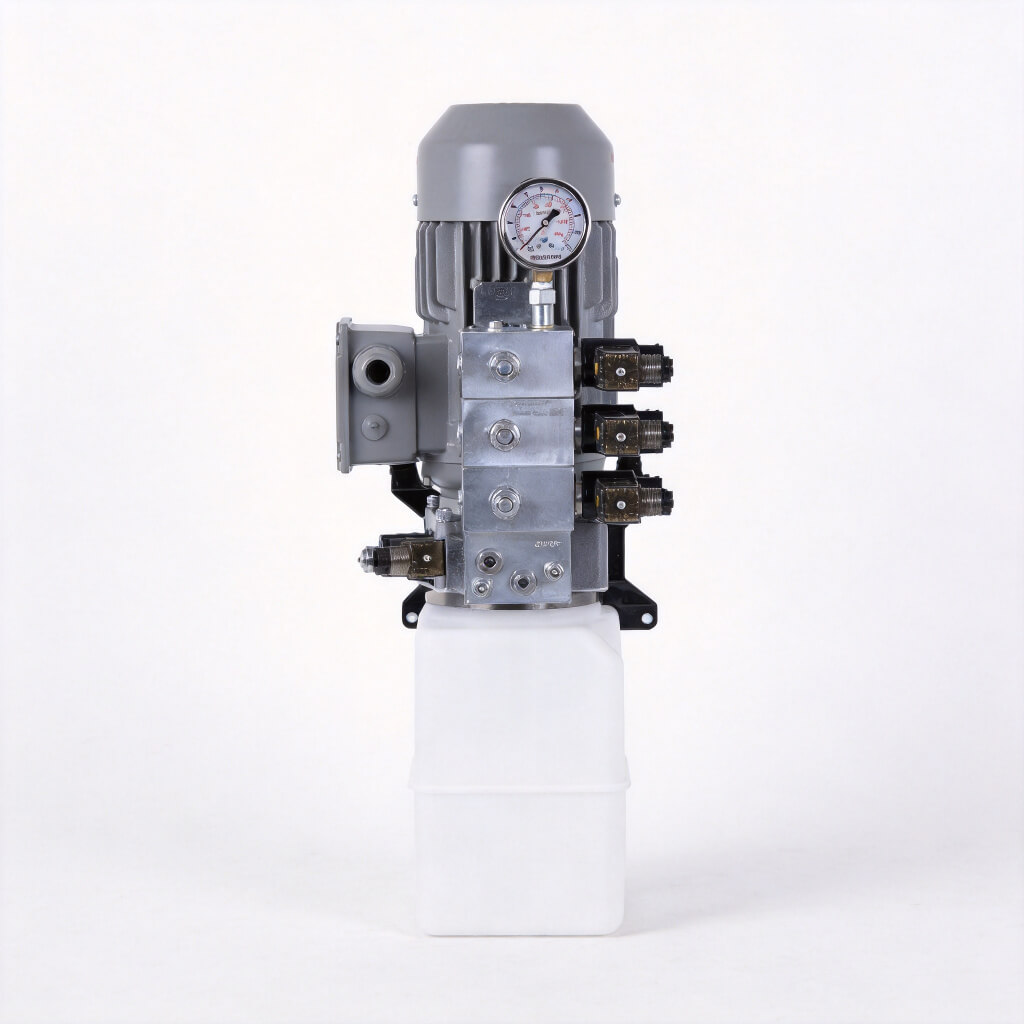

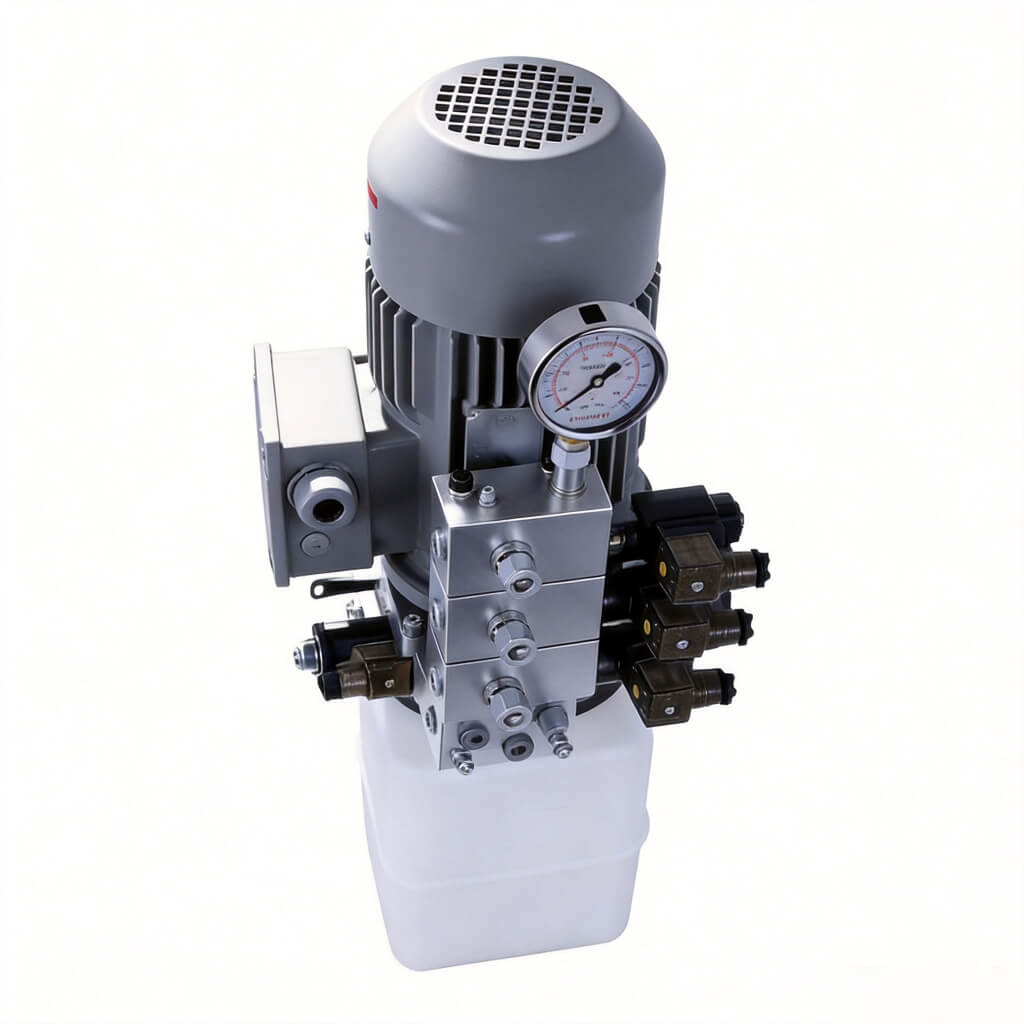

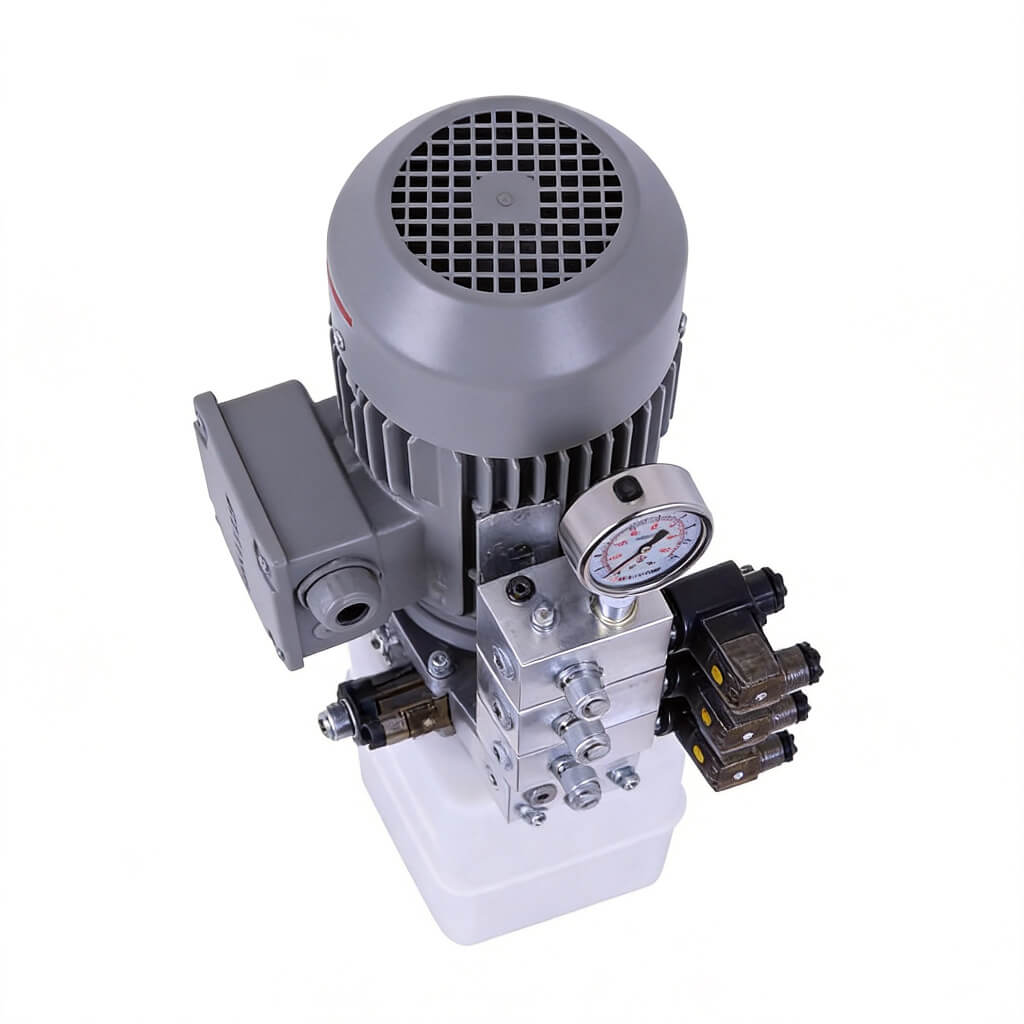

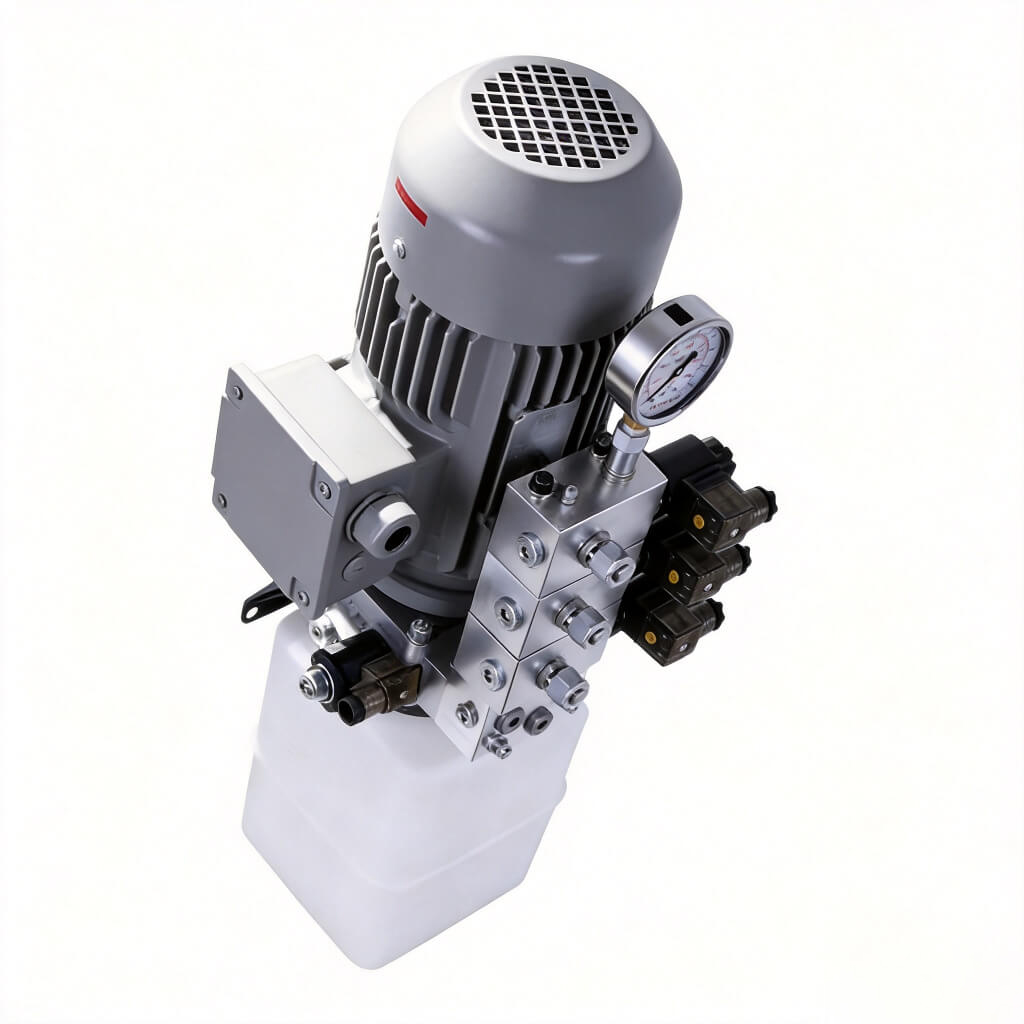

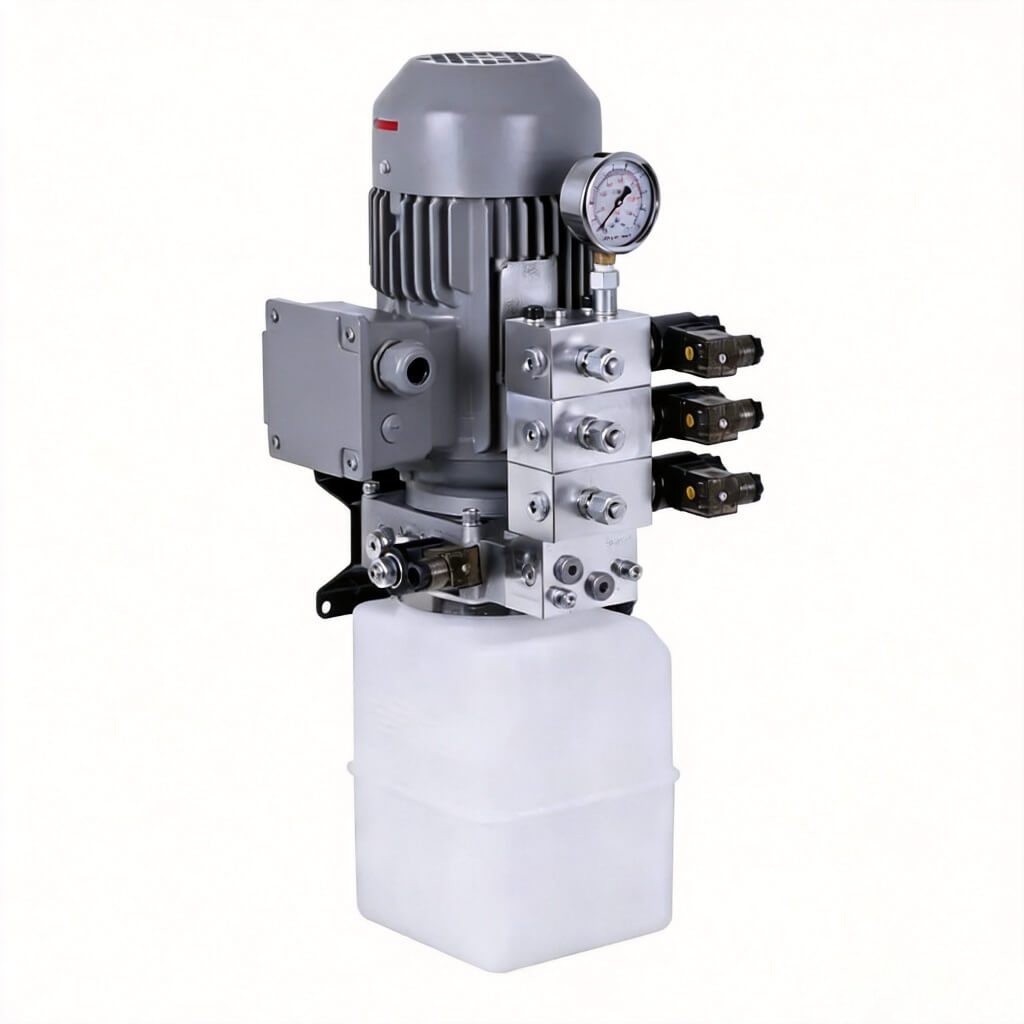

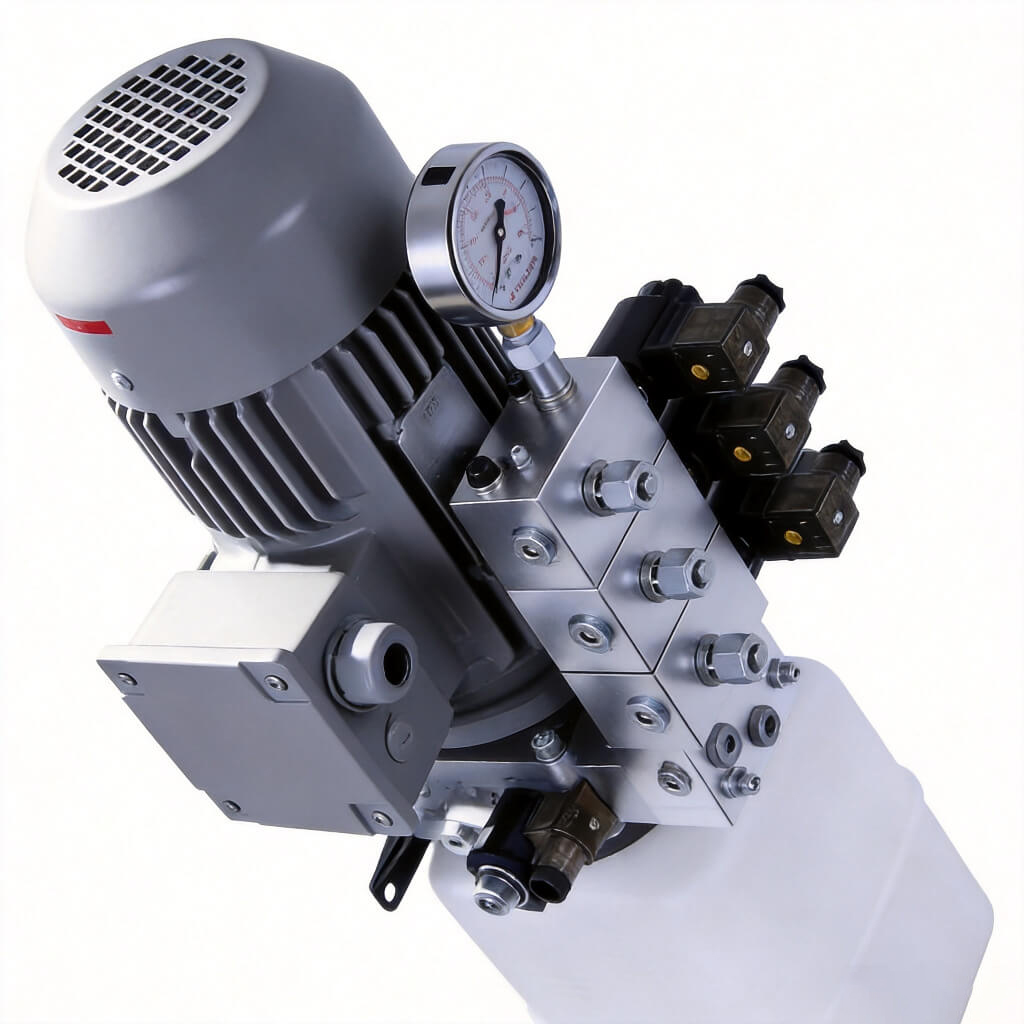

Hydraulic Power Unit for Lift Platform
SONGEE AC Hydraulic Power Unit provides a compact and efficient hydraulic solution for lift platforms. The integrated hydraulic design ensures smooth lifting operation with reliable performance, making it suitable for industrial lifting equipment and customized hydraulic systems.
Service Online：
- Overview
This hydraulic power unit is designed for storage flushing gate systems. It integrates a high-pressure gear pump, AC motor, central valve block, cartridge valve and oil tank.
The modular design allows 2–10 imported two-way check solenoid valve channels to be stacked for independent multi-gate control.
The system offers zero leakage, strong pressure holding, 0.55–1.1 kW motor options, 220–380V voltage options, and iron or plastic oil tank choices.
Main Features
- Modular design
- 2–10 stackable valve channels
- Zero leakage and pressure holding
- 0.55–1.1 kW motor options
- Iron or plastic oil tanks
Applications
- Flushing gate systems
- Sluice gate control
- Multi-gate independent control
Special Notes
- S3 intermittent duty cycle
- Recommended hydraulic oil viscosity: 15–68 cSt
- Replace oil after the first 100 hours, then every 3,000 hours
- Keep cylinders, pipes and joints clean before installation
Modular Multi-Gate Control, Stable Pressure Holding, Reliable Daily Operation
